YaVCF: MS20-inspired resonant VCF (6HP - partial build)
YaVCF: MS20-inspired resonant VCF (6HP - partial build)
Couldn't load pickup availability

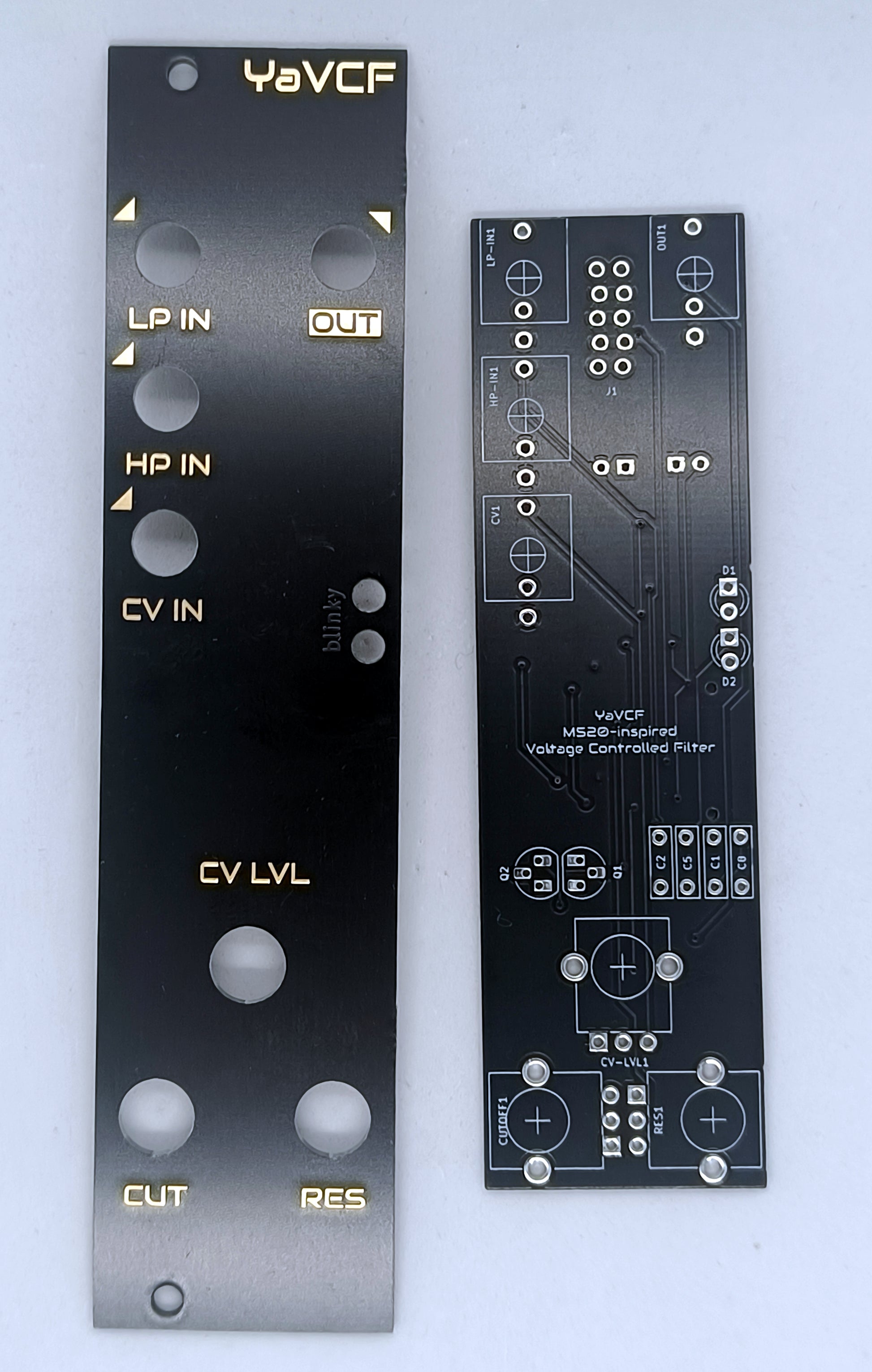

This is a PCB/panel set for the YaVCF filter module.

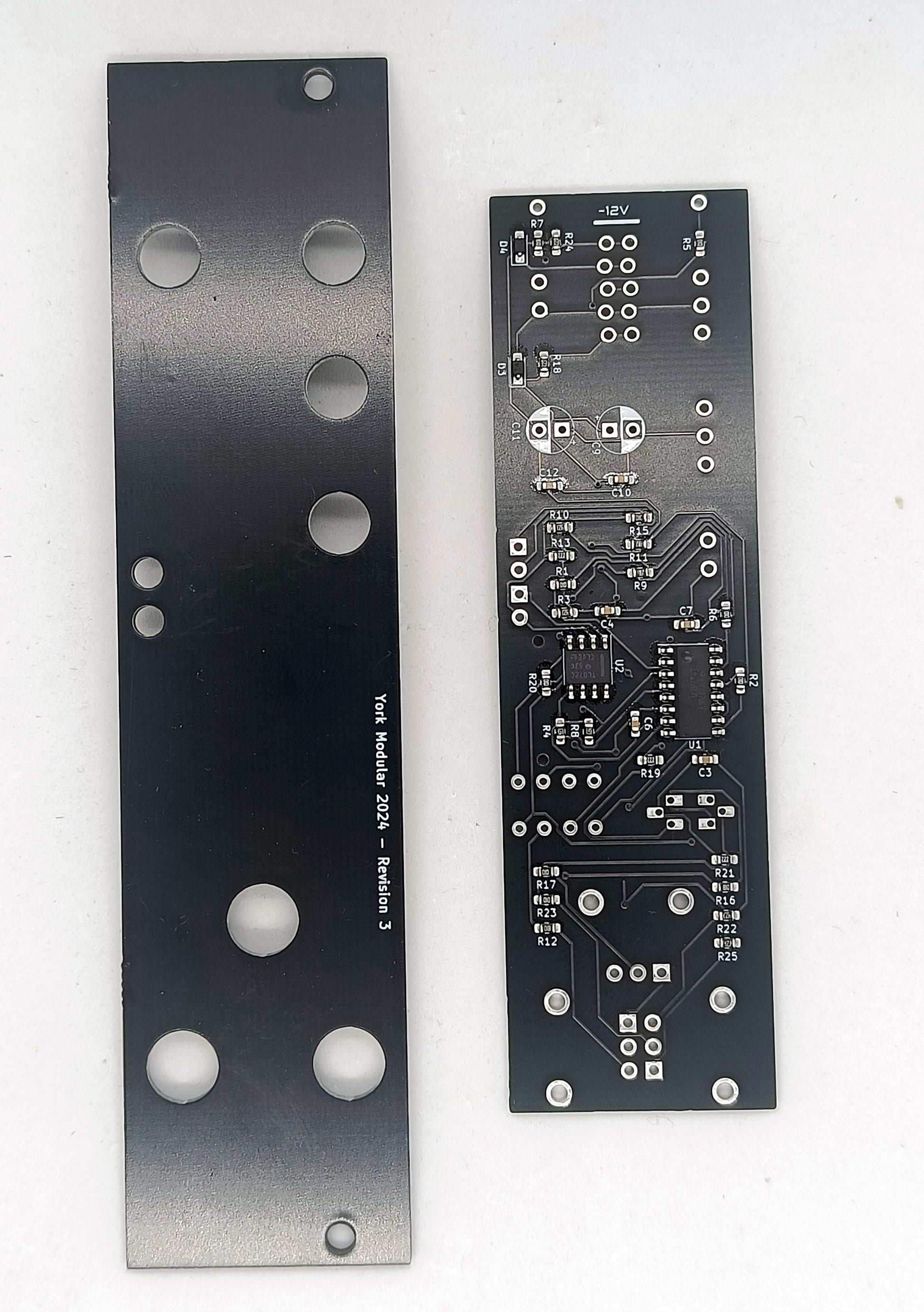

All surface-mount components have been pre-soldered - it is up to you to provide the necessary through-hole componentry to complete the build. These are updated boards which have been fabricated by a PCB assembly service - the hand-built modules are now sold out.
The following will be required:
- 4x PJ301M(-12) jacks (aka. THONKICONN)
- 2x red LEDs (D1, D2) for the feedback section - the square pad is the LED cathode.
- 2x 2N3906 PNP transistors (Q1, Q2)
- 3x 1nF film capacitors (C2, C5, C8) - you could use ceramic caps but it will likely change the character of the filter.
- 1x 220nF film capacitor (C1)
- 2x 10uF electrolytic capacitors (C9, C11) - note the polarity!
- 3x Alpha RK097 (or equivalent) pots - 100k linear taper recommended.
- 2x5 IDC header
Whatever you do, solder up the power connector before you solder the jacks in place, otherwise it will be almost impossible to solder the power connector without damaging the bodies of the jacks. Other than this, components can be fitted in any order.
US CUSTOMERS PLEASE NOTE: since no additional assembly is done, the country of origin of these boards is China. Complete modules will have the COO listed as the United Kingdom as I do all the necessary assembly and testing prior to shipping.
