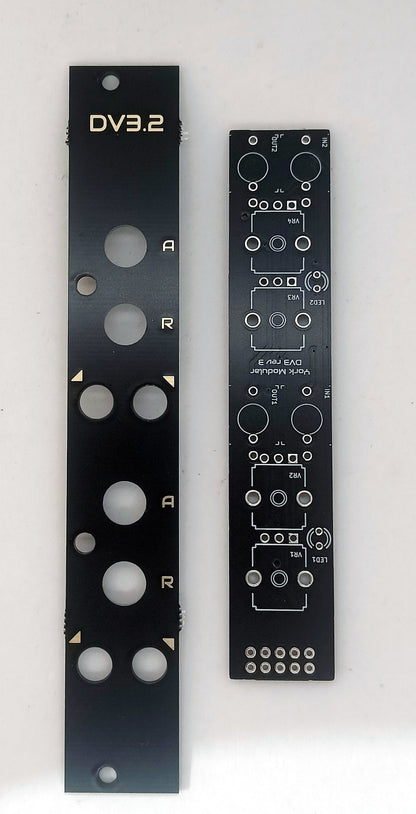

DV3: Dual AD/AR envelope generator/slew limiter (4HP - partial build)

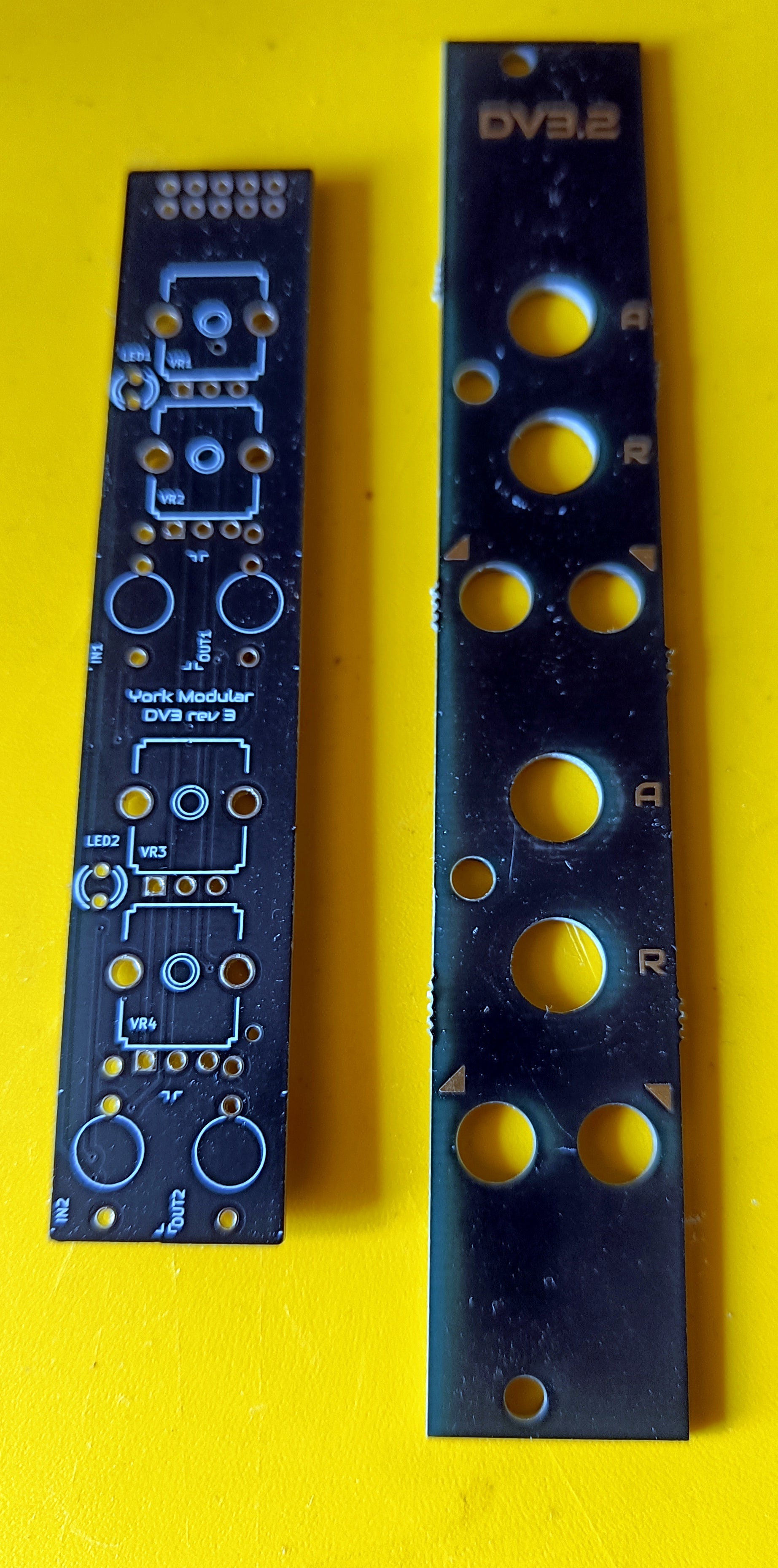

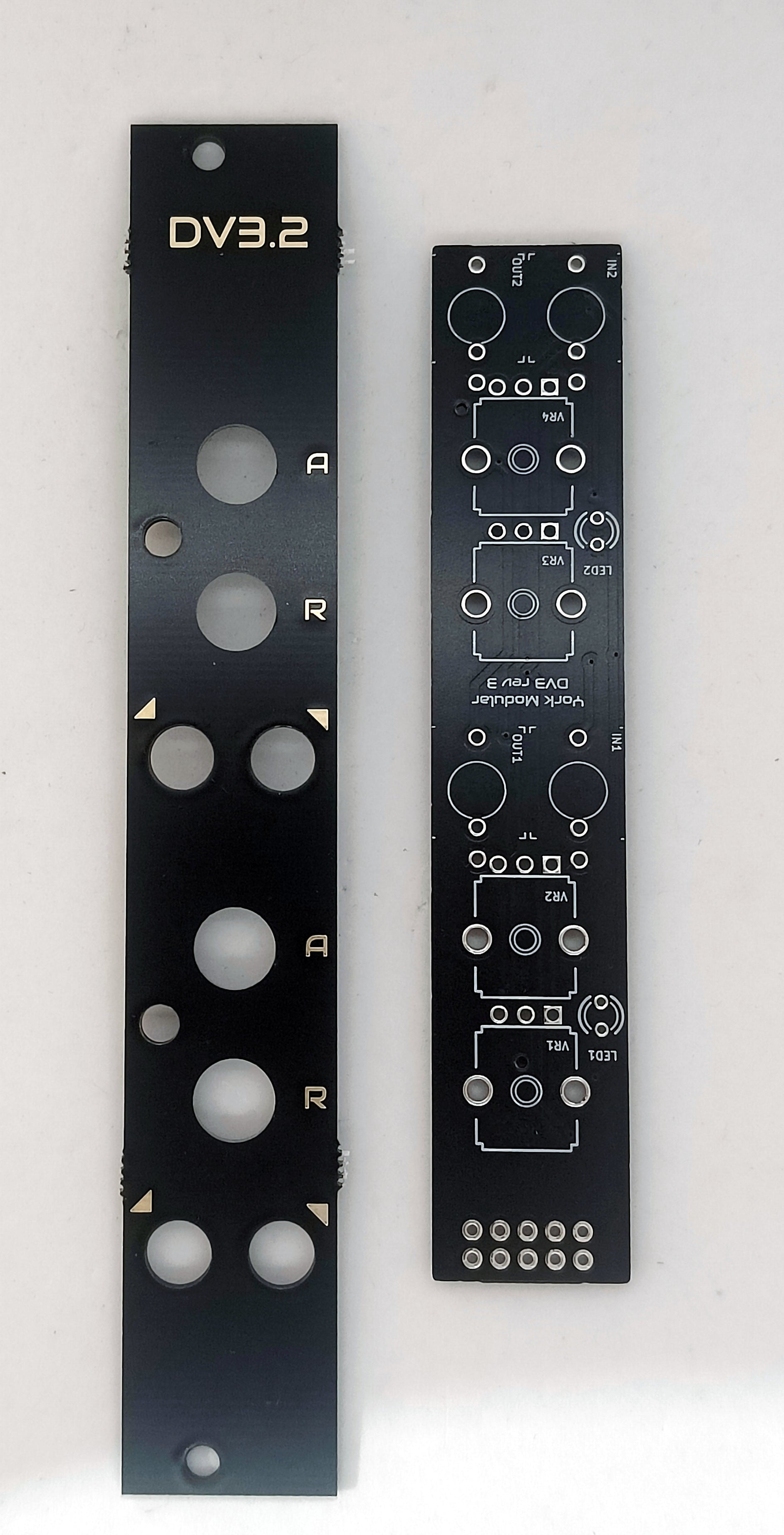

This is a PCB/panel set for the DV3 dual AR module.

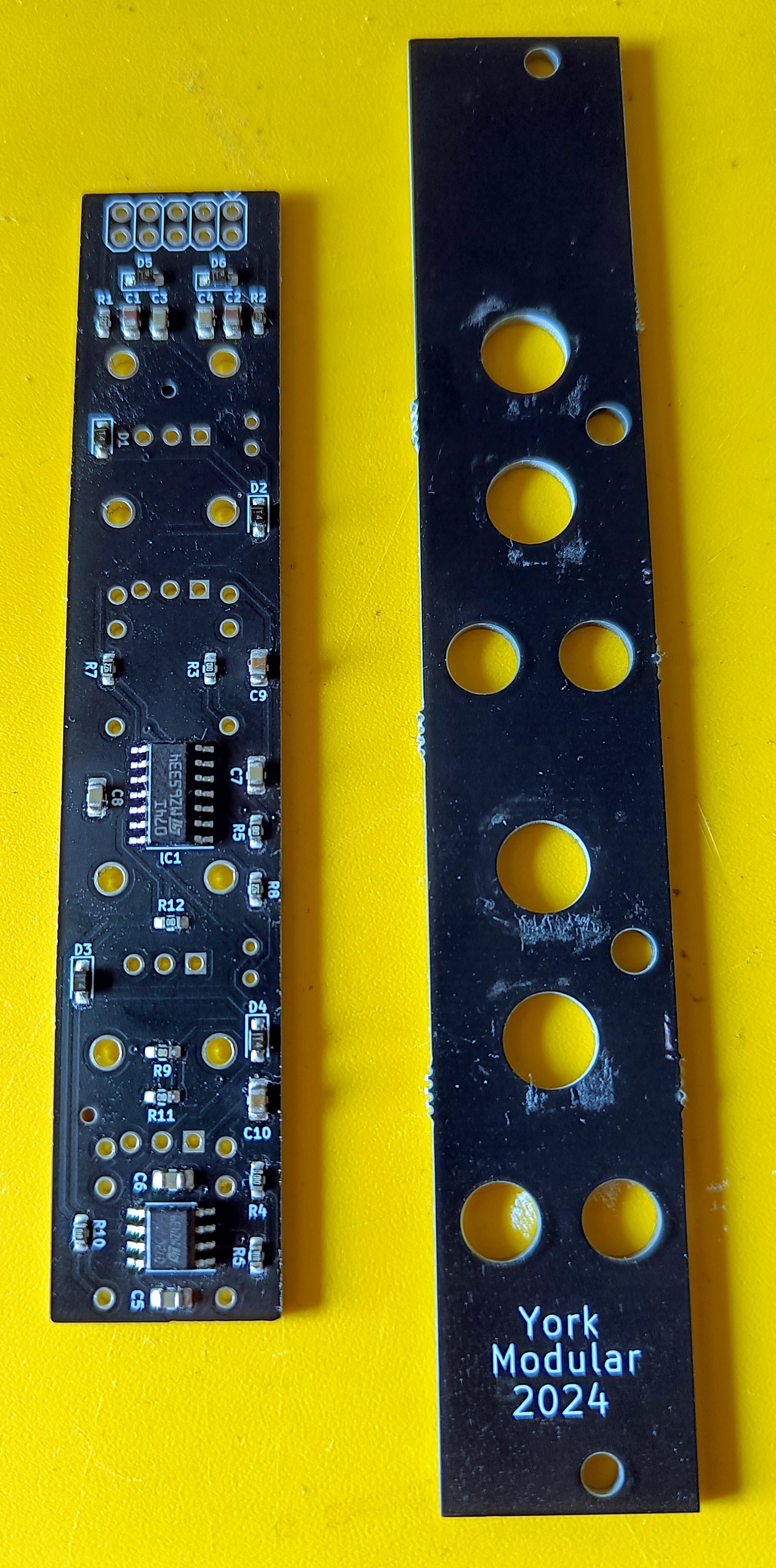

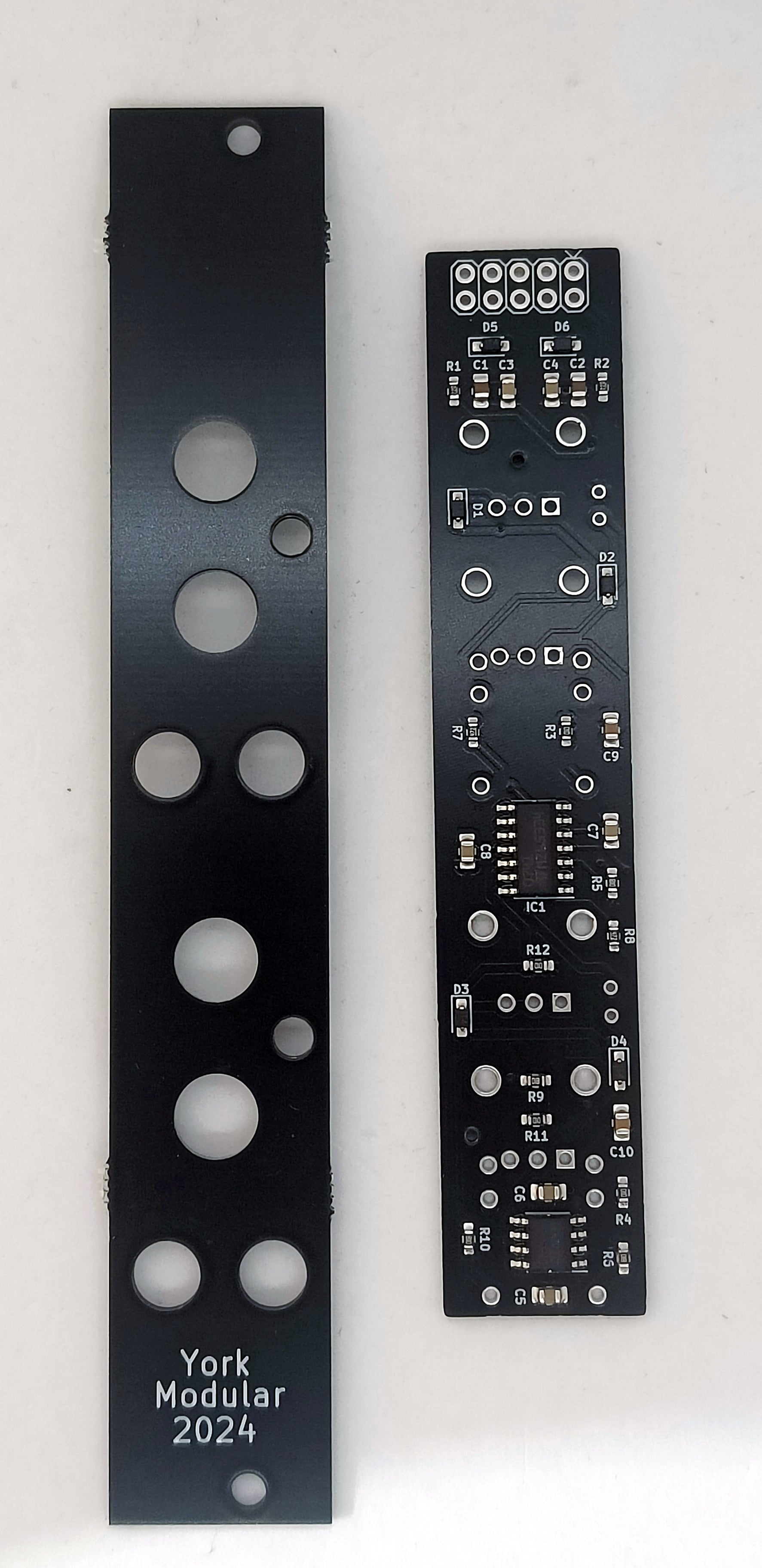

All surface-mount components have been pre-soldered - it is up to you to provide the necessary through-hole componentry to complete the build. These are updated boards which have been fabricated by a PCB assembly service - the hand-built modules are now sold out.

You can read about the reasoning behind partial builds here🔗

The following will be required:

• 1x Eurorack power header (2x5) 🔗 - the chevron on the silkscreen corresponds to -12V
• 4x Alpha RK097N pots (or compatible) - 1M audio taper recommended.
• 4x PJ301M-12 (aka THONKICONN) jacks (or compatible)
• 2x 3mm LEDs - both LEDs are buffered, so you don't need to worry too much about voltage drop. The reference designator is placed on the ground side of the LED footprint.

• 4x knobs to suit. - Davies 1900h knobs do the job, and are what I fit to complete modules.
• Power cable and mounting hardware (M3x6 machine screws will suffice)

US CUSTOMERS PLEASE NOTE: since no additional assembly is done, the country of origin of these boards is China. Complete modules will have the COO listed as the United Kingdom as I do all the necessary assembly and testing prior to shipping.
