AM5: 5-way buffered multiple module (2HP - partial build)

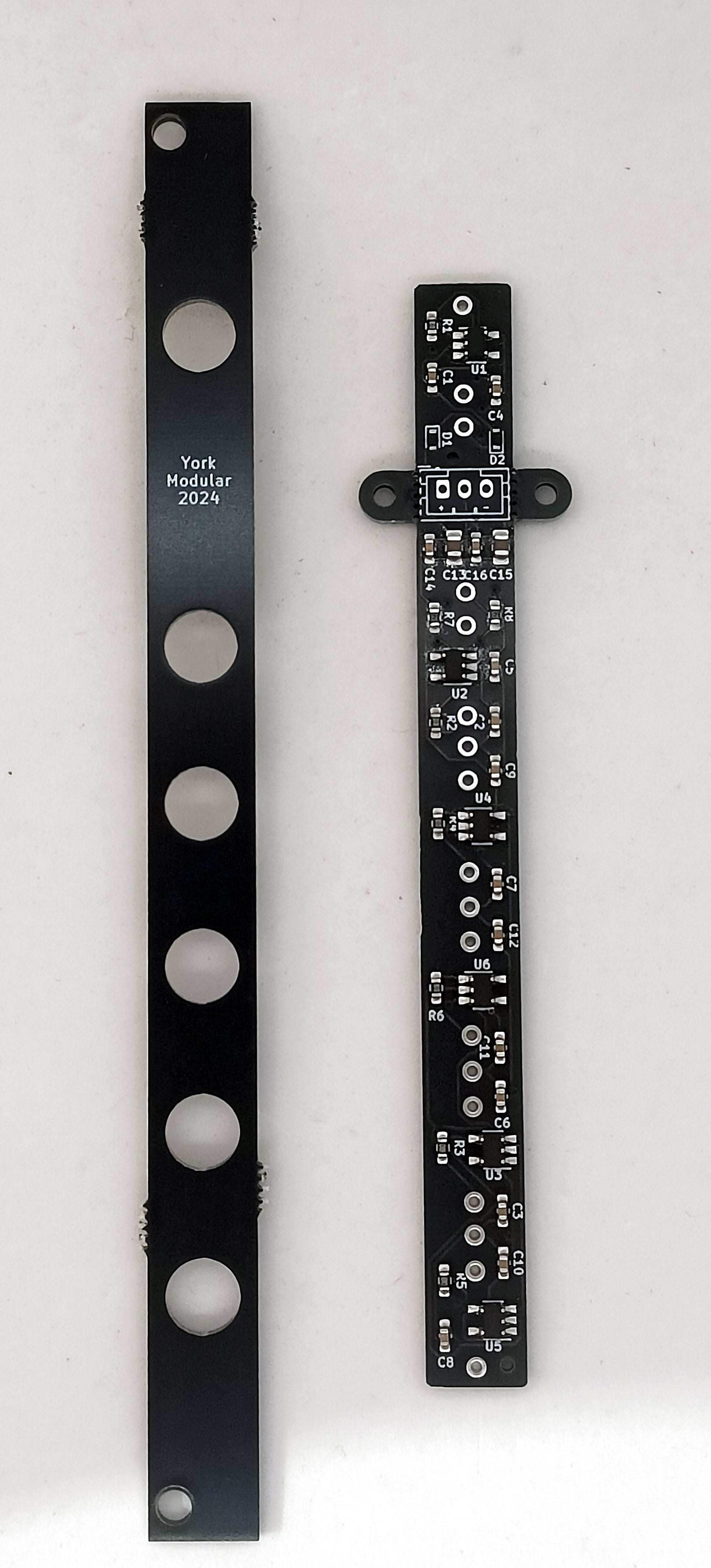

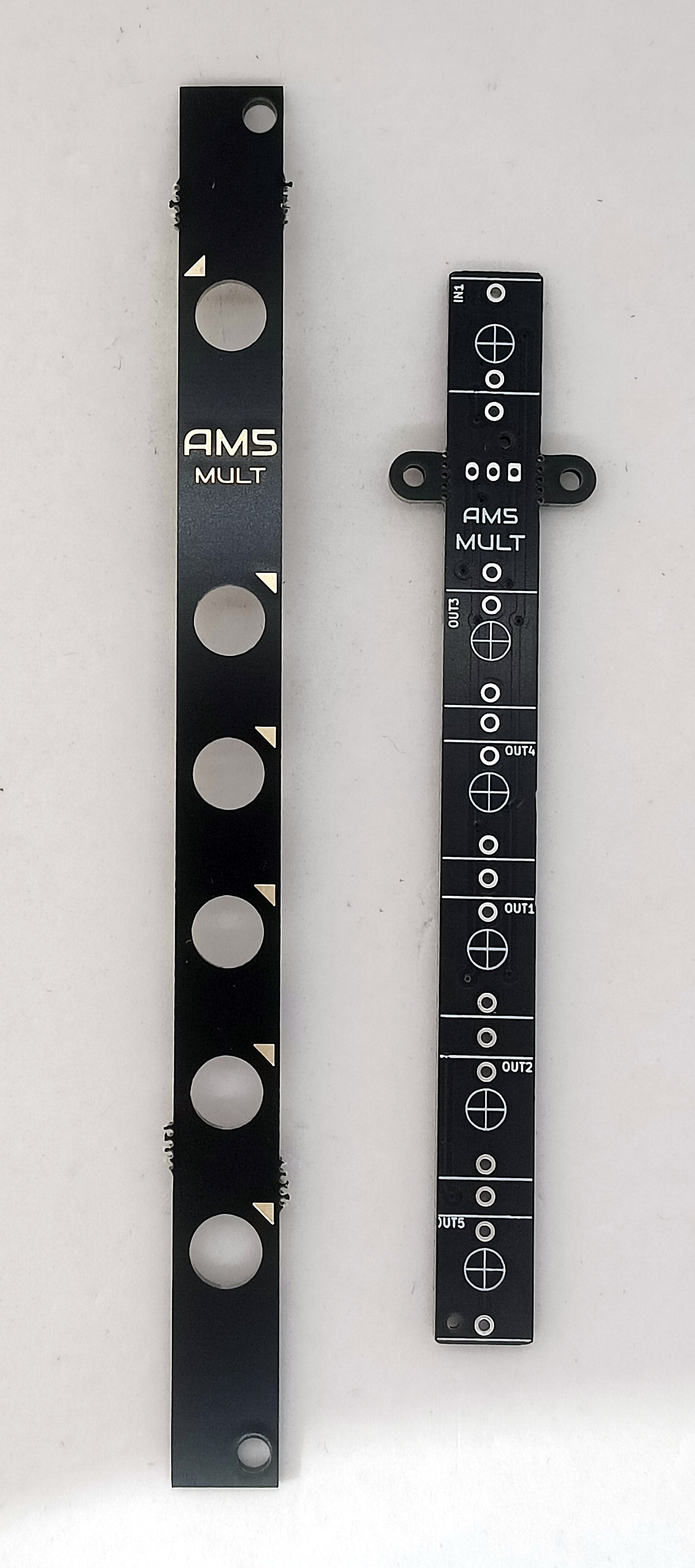

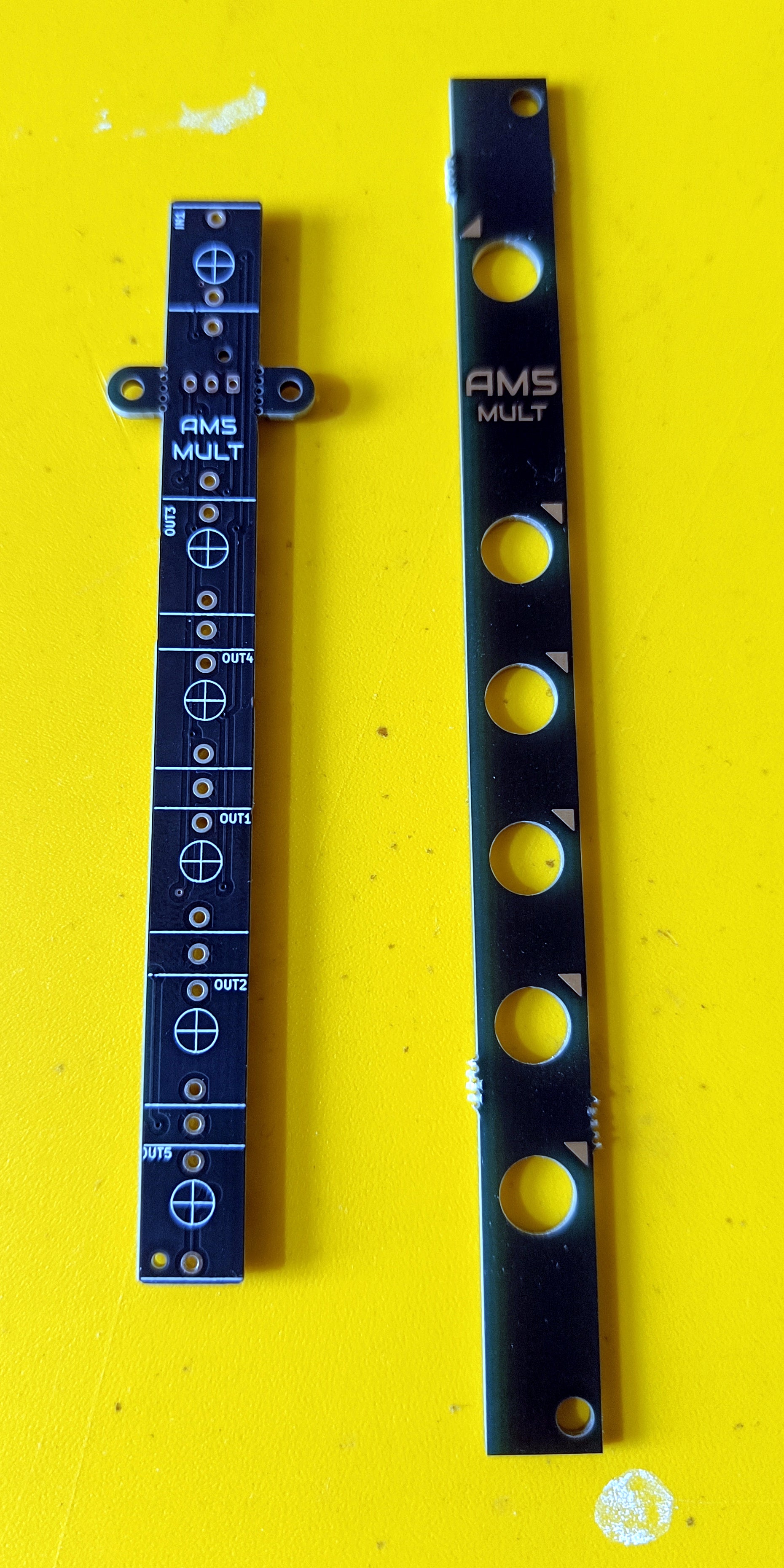

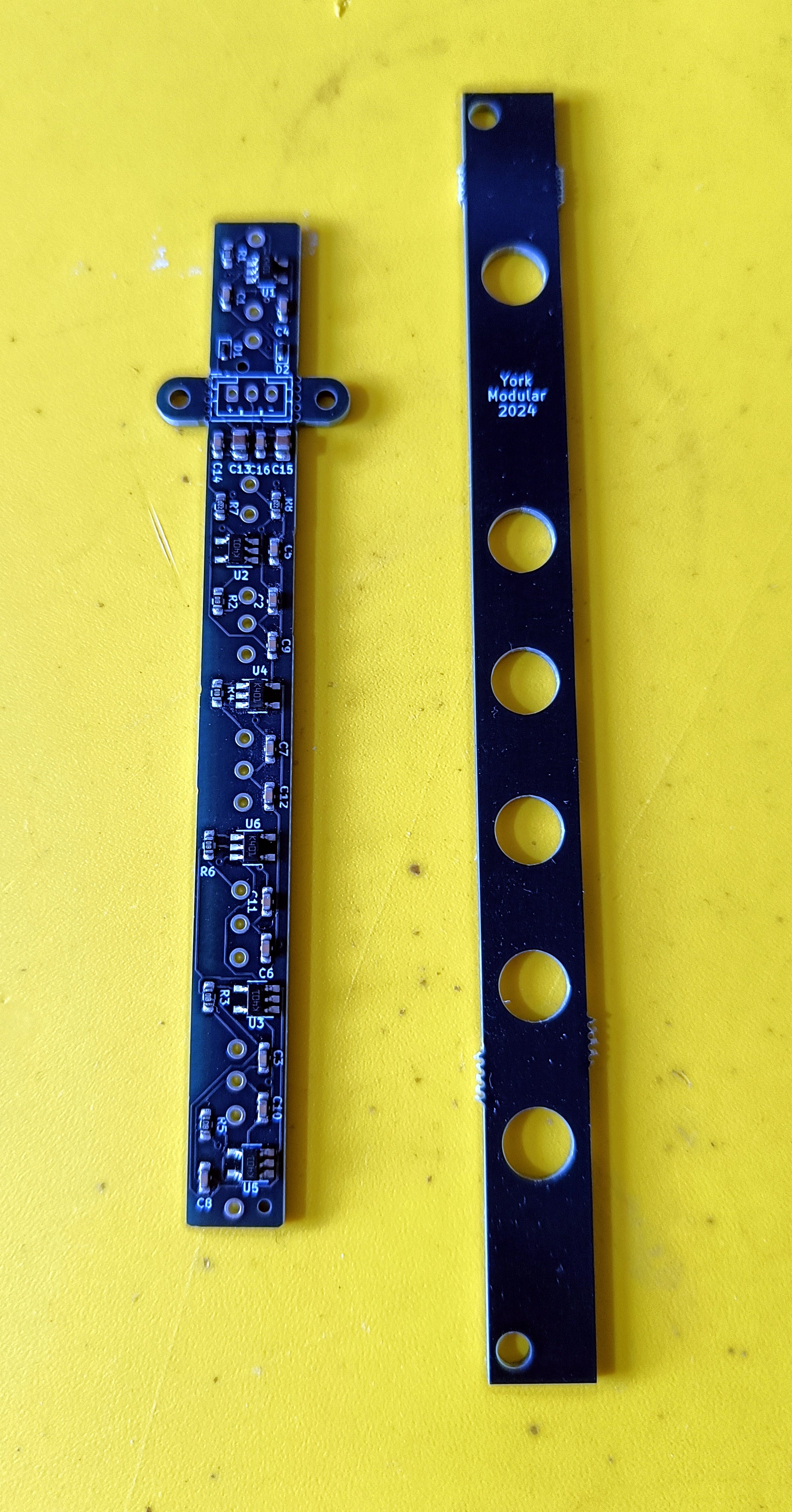

This is a PCB/panel set for the AM5 5-way buffered multiple module.

All surface-mount components have been pre-soldered - it is up to you to provide the necessary through-hole componentry to complete the build. These are updated boards which have been fabricated by a PCB assembly service - the hand-built modules are now sold out.

You will need the following items to complete the build:

• 6x PJ301M(-12) jacks (better known as the THONKICONN) - solder them into the appropriate spots on the circuit board; it doesn't matter which jack goes where.
• A Euro-to-JST power adapter🔗 unless you want to get creative with the wiring.
• An appropriate Eurorack power cable.
• Mounting hardware (eg. M3x6 machine screws)

Prior to assembly, snap off the two 'ears' adjacent to the power connector footprint (you'll see the mousebites along the edge of the board) - these are placed as an aid to fabrication and are not part of the functional design.

US CUSTOMERS PLEASE NOTE: since no additional assembly is done, the country of origin of these boards is China. Complete modules will have the COO listed as the United Kingdom as I do all the necessary assembly and testing prior to shipping.
