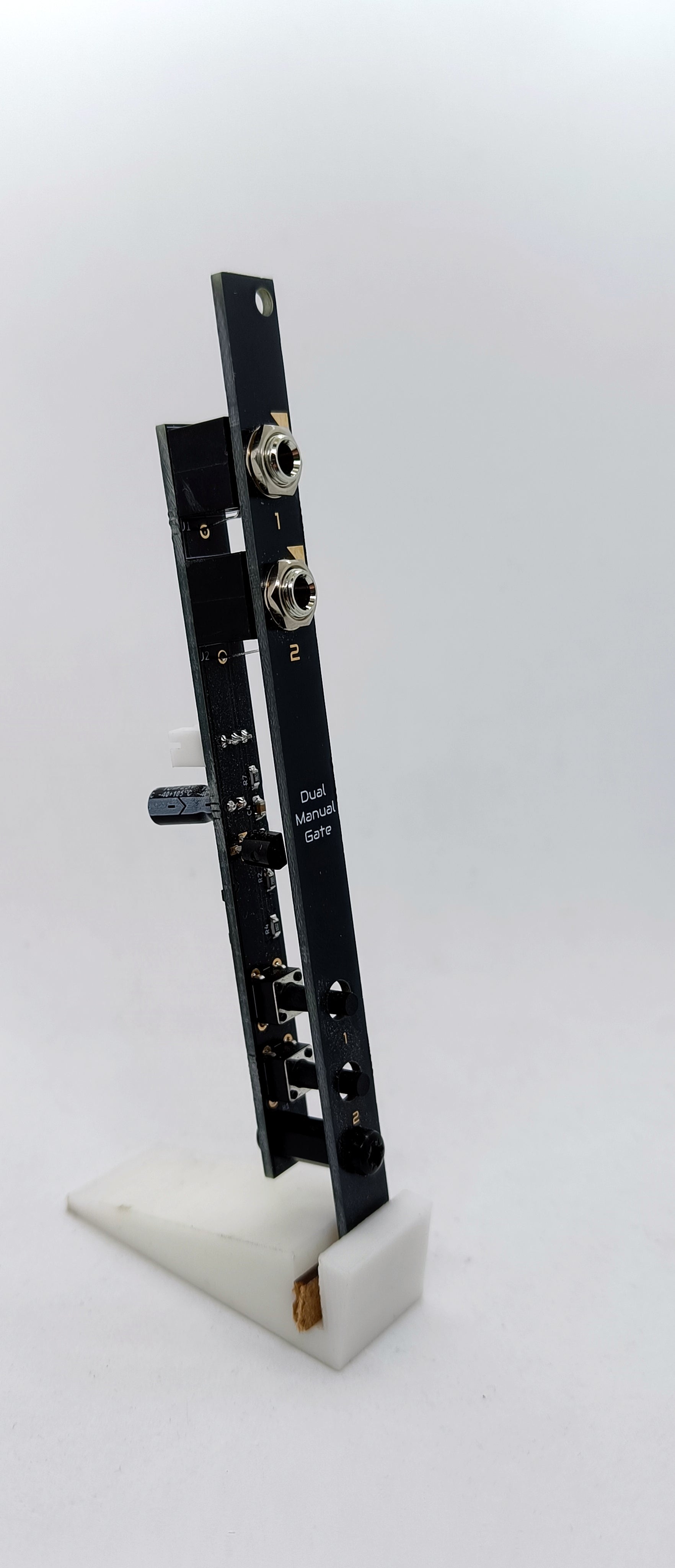

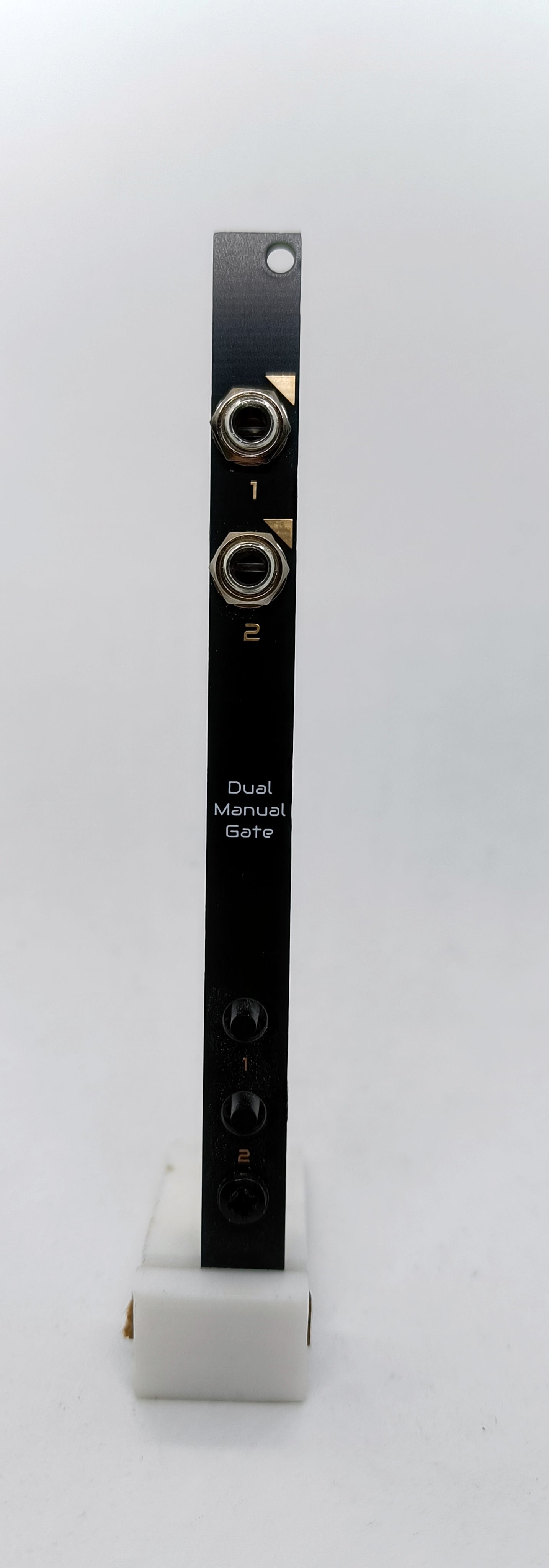

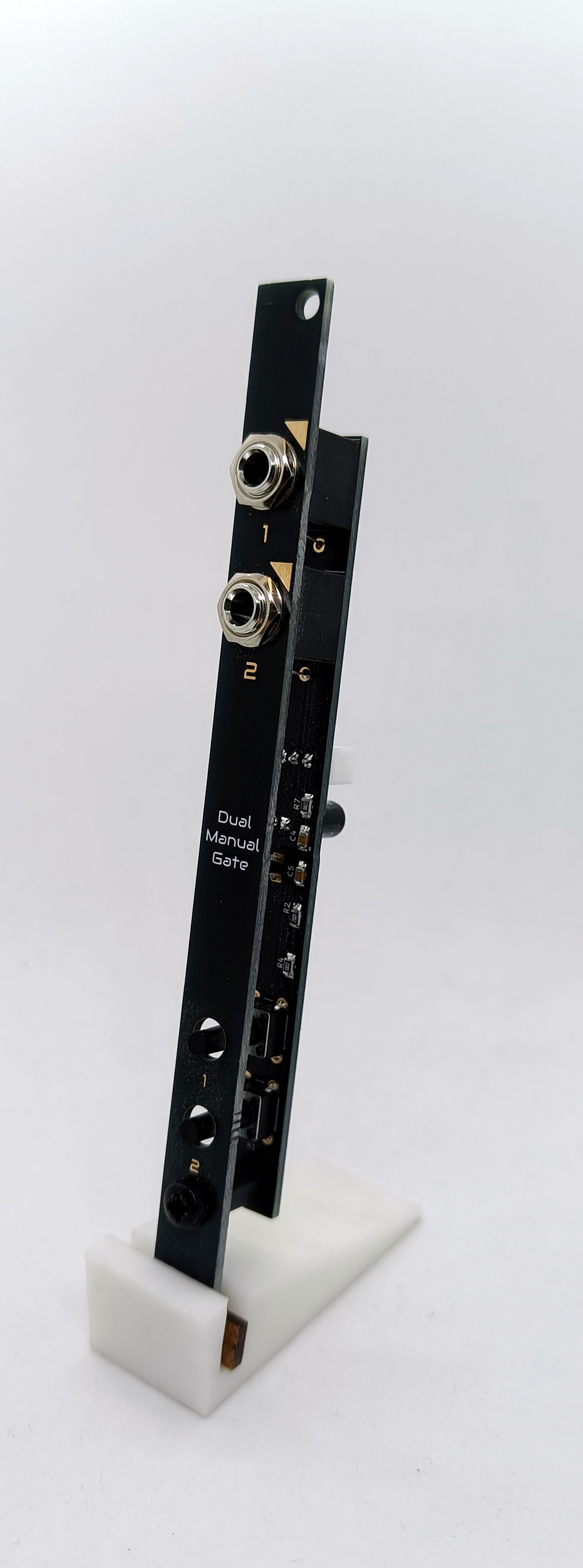

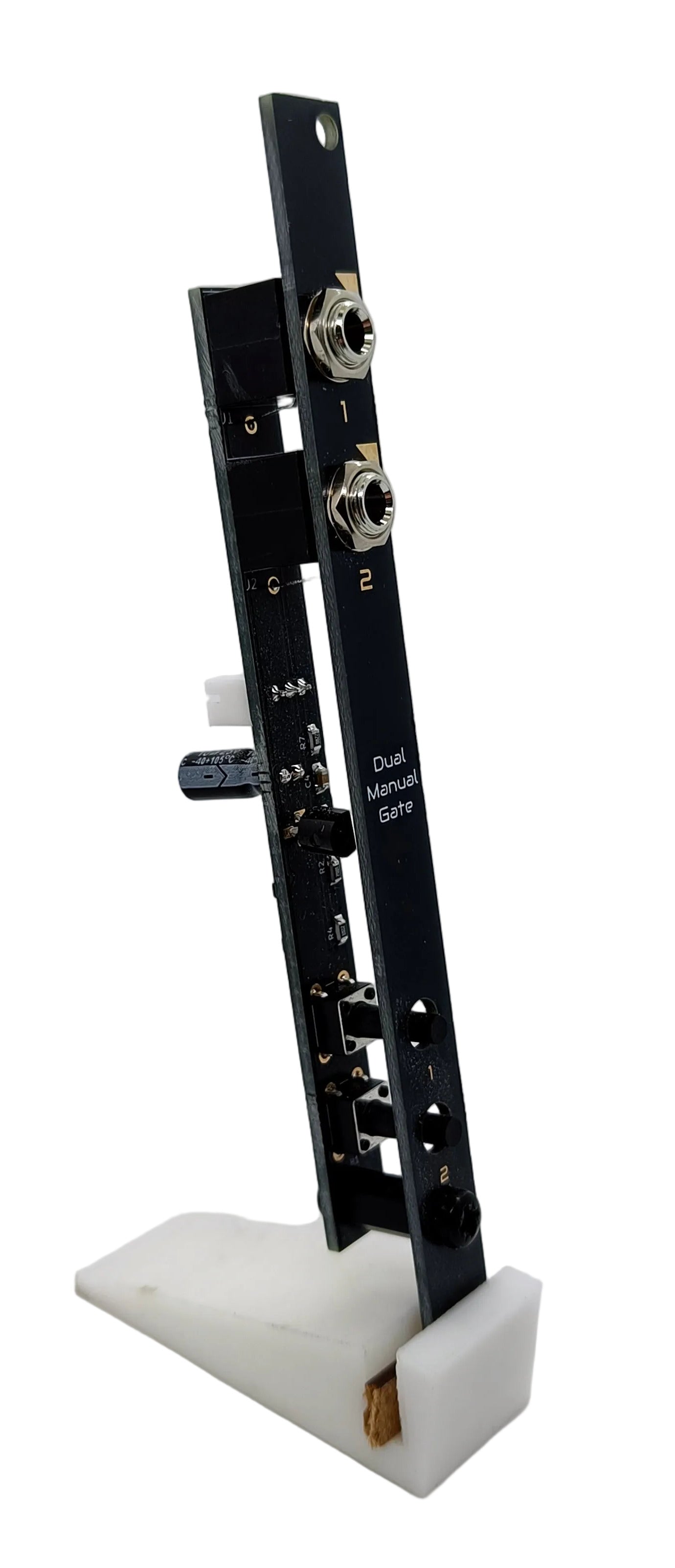

QuiteSmallGate: dual manual gate module (2HP)

Push your buttons ...

A dual manual gate module in 2HP - use it to do things like reset sequencers or clock dividers, or one-shot envelope generators. The opportunities aren't quite endless but there are still quite a few of them. Both buttons use Schmitt trigger outputs in order to minimise switch bounce and false triggering. Both channels are electrically independent.

The gate voltage is 5V - if you require something larger then you may need to get creative, since the 74-series IC I use has a maximum supply voltage of 5.5V. If you need a lower voltage you can simply route the output through an attenuator.

Note that both outputs are momentary - push the button and the output goes high, release the button and it goes low again (plans are afoot for a module which will allow the switch action to be latched, but that's not ready yet). If you're desperate for a latched switch then you can use the 2WAY module.

Note that this module is built to order as it contains components which I generally don't keep in stock (specifically the tactile switches and the 74LVC1G14 Schmitt trigger ICs) - this means that there may be a few days lead time should I need to order more components.

2HP wide. Supplied with power cable and Euro-to-JST adapter.
