SEQ8.2: 8-step CV sequencer with reset (6HP PCB/panel)

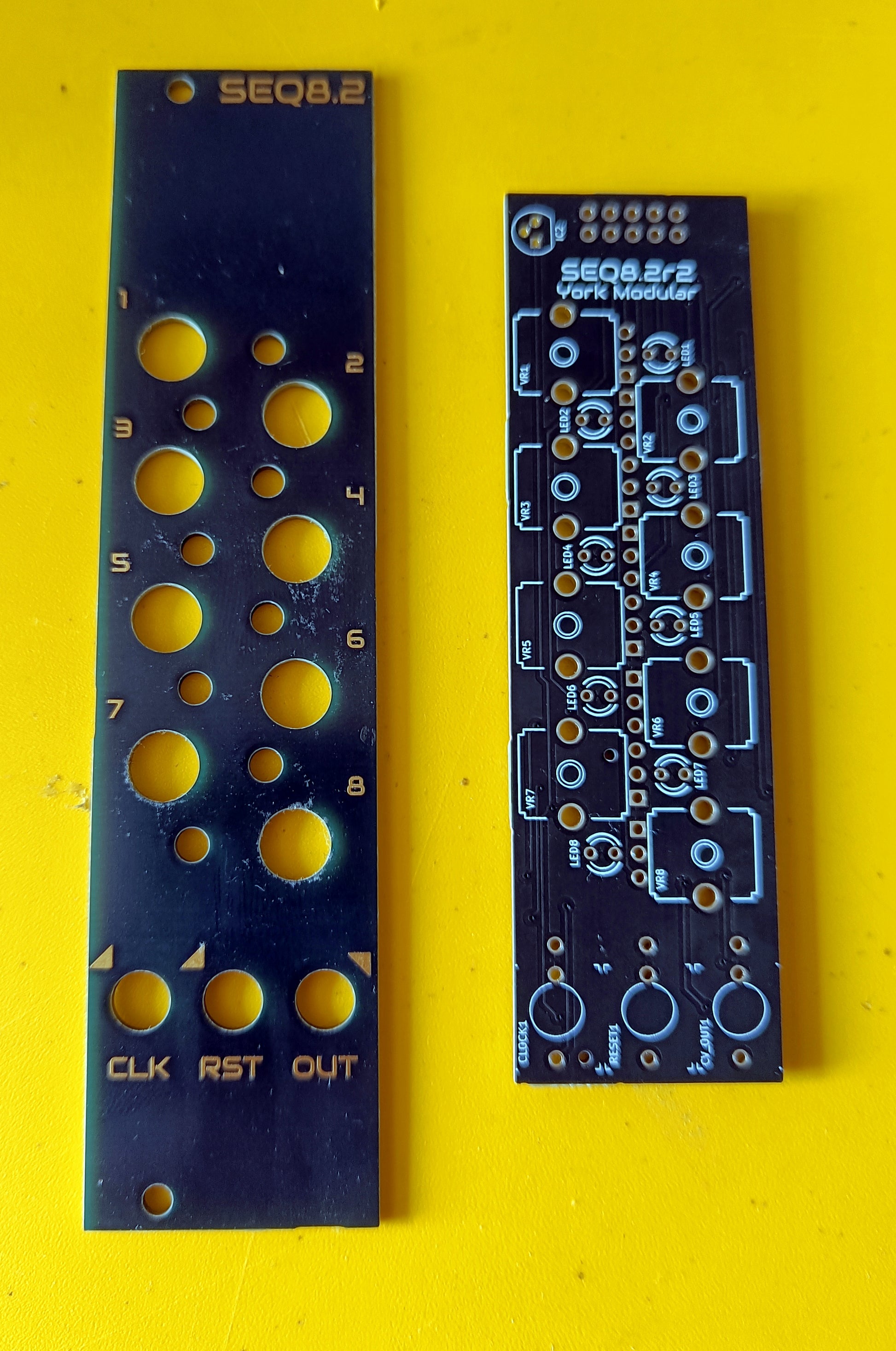

This is a PCB/panel set for the SEQ8.2 sequencer module.

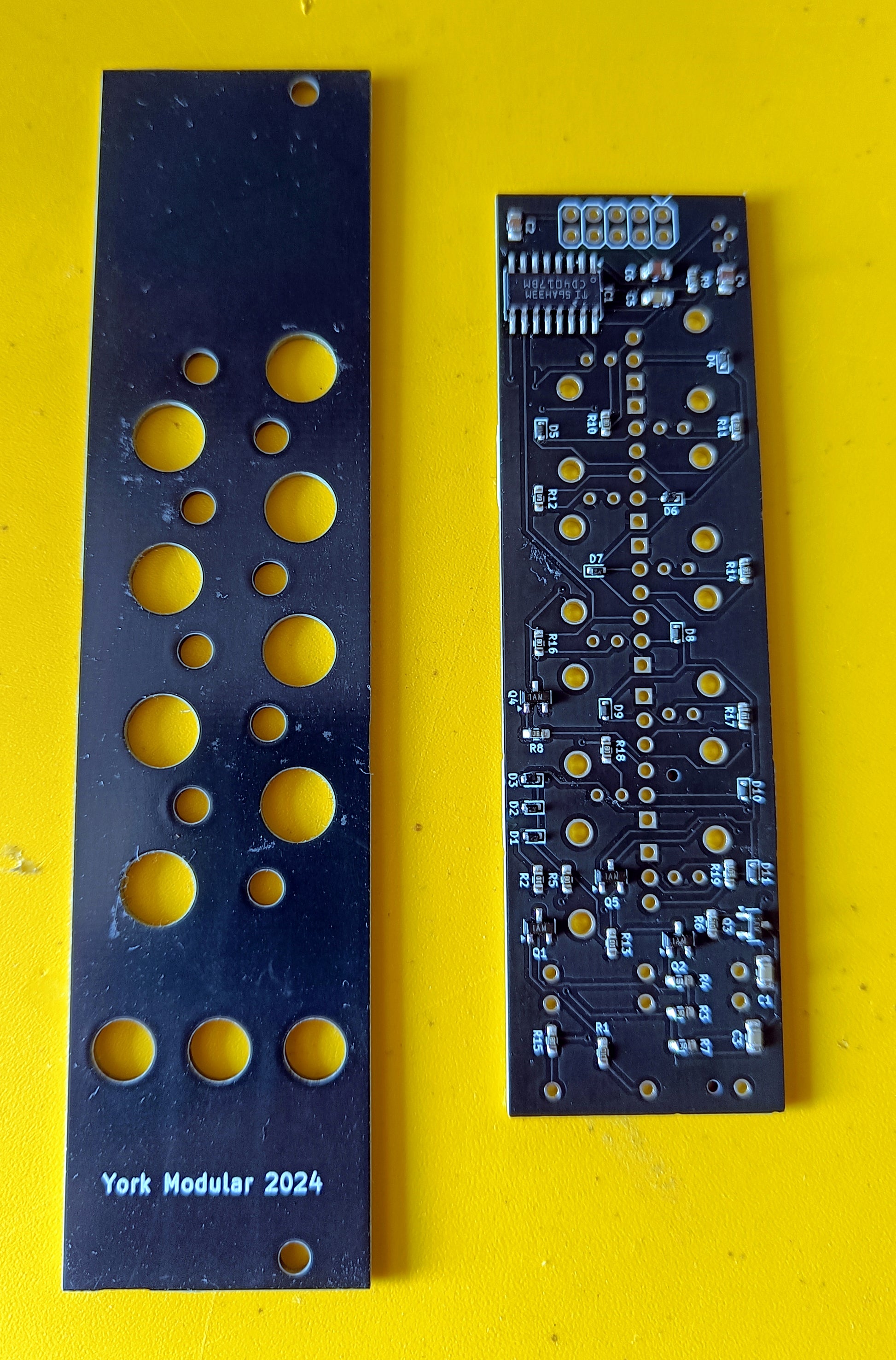

All surface-mount components have been pre-soldered - it is up to you to provide the necessary through-hole componentry to complete the build. These are updated boards which have been fabricated by a PCB assembly service - the hand-built modules are now sold out.

The following will be required:

• 1x Eurorack power header (2x5) - the chevron on the silkscreen corresponds to -12V
• 8x Alpha RK097N pots (or compatible) - 50k linear taper recommended.
• 3x PJ301M-12 (aka THONKICONN) jacks (or compatible)
• 8x 3mm LEDs - I recommend Vishay TLHR4400 LEDs, as they have a voltage drop of only 2V.

• 8x knobs to suit - micro-knobs will be your best bet. Davies-style knobs will fit, but clearance will be extremely tight. Anything with a diameter of over 13mm plain won't work.

• An 8 or 9-volt TO-92 voltage regulator (7808/7809) - assuming you use red LEDs this will give you a working voltage range of around 0-6V.
• Power cable and mounting hardware (M3x6 machine screws will suffice)

US CUSTOMERS PLEASE NOTE: since no additional assembly is done, the country of origin of these boards is China. Complete modules will have the COO listed as the United Kingdom as I do all the necessary assembly and testing prior to shipping.
