AMX3.2: 3-channel active mixer (2HP - partial build)

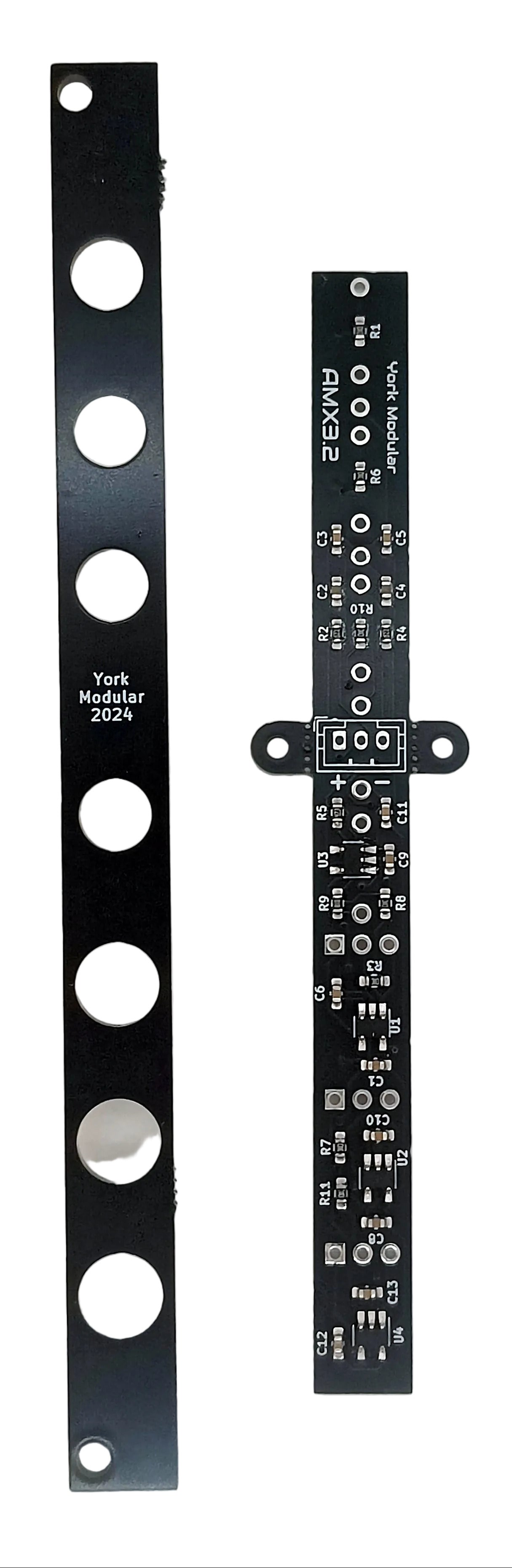

This is a PCB/panel set for the AMX3.2 active mixer module.

All surface-mount components have been pre-soldered - it is up to you to provide the necessary through-hole componentry to complete the build. These are updated boards which have been fabricated by a PCB assembly service - the hand-built modules are now sold out.

The following will be required:

• 3x Alpha RK097 pots (or compatible) - 10k linear taper recommended. Audio-taper pots are also suitable if they fit your particular use-case.
• 4x PJ301M-12 (aka THONKICONN) jacks (or compatible)
• 3x knobs to suit - one for each pot. Due to the small size of the module, micro-knobs are  your best bet.
• A Eurorack-to-JST power adapter🔗(unless you want to roll your own)
• Power cable and mounting hardware (M3x6 machine screws will suffice).


Prior to assembly, snap off the two 'ears' adjacent to the power connector footprint (you'll see the mousebites along the edge of the board) - these are placed as an aid to fabrication and are not part of the functional design.

US CUSTOMERS PLEASE NOTE: since no additional assembly is done, the country of origin of these boards is China. Complete modules will have the COO listed as the United Kingdom as I do all the necessary assembly and testing prior to shipping.
